SoundTraxx 881006 – ECO-21PNEM – Econami Sound Decoder Steam-2

A true pioneer in the model train industry, SoundTraxx has been creating innovative products for the discriminating model railroader since 1990. We proudly design and manufacture our industry-best products right here in the USA, and our friendly customer support staff work side-by-side with the rest of our product team.

A true pioneer in the model train industry, SoundTraxx has been creating innovative products for the discriminating model railroader since 1990. We proudly design and manufacture our industry-best products right here in the USA, and our friendly customer support staff work side-by-side with the rest of our product team.

Econami Decoders
The biggest name in sound is also the biggest name in value! Econami is a full-featured line of Digital Sound Decoders designed with value in mind.

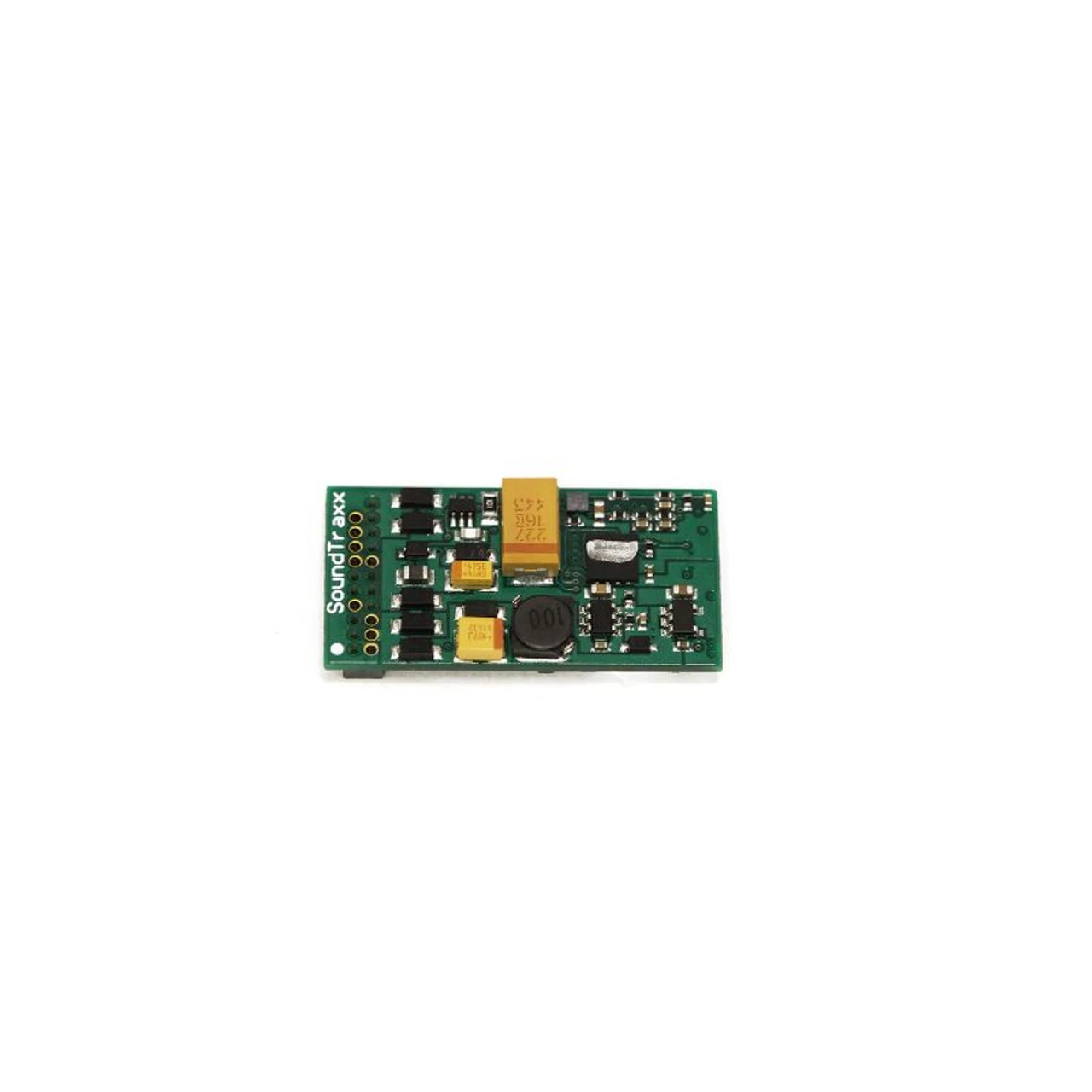

The Econami ECO-21PNEM
This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket.

HIGH QUALITY SOUND LIBRARY
Our large selection of high quality sound effects include:

• 4 Exhaust Chuffs
• 5 Prime Movers in each sound profile
• Up to 7 Bells
• 16 Airhorns
• 16 Whistles
• Additional couplers, dynamos, and more!

EASY INSTALLATION
This decoder simply plugs into models equipped with an NEM-supported 21-pin socket and can be wired to a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.

Dimensions:	30.5 x 15.5 x 6.6mm
Max. Motor Stall Current:	1A
Max. Function Current:	100mA (each output)
Function Outputs:	6
Audio Amplifier:	2 Watt, 8-Ohm Load
DCC Track Voltage:	7.5V – 22V
Sound Channels:	12

Econami Owner’s Manual

Econami Installation Guide

Econami Diesel Quick Start Guide

Econami Steam Quick Start Guide

Econami Steam User’s Guide

Econami Diesel User’s Guide

Econami Sound Selection References:
Econami Steam Sound Selection Reference
Econami Diesel Sound Selection Reference

Econami Sound Samples
Econami Steam Sounds
Econami Diesel Sounds
